Dissipation Factor ≤ 0.1 Percent X2 Protective Device Capacitor Capacitance Tolerance ±20 Percent Optimized for Performance in Power Electronics

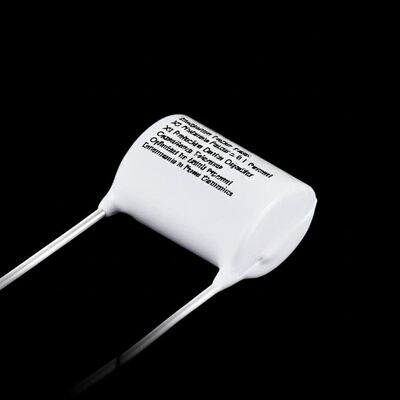

Ampliación de imagen : Dissipation Factor ≤ 0.1 Percent X2 Protective Device Capacitor Capacitance Tolerance ±20 Percent Optimized for Performance in Power Electronics

Datos del producto:

Place of Origin:	CHINA
Nombre de la marca:	SLFCF

Contacto

Dissipation Factor ≤ 0.1 Percent X2 Protective Device Capacitor Capacitance Tolerance ±20 Percent Optimized for Performance in Power Electronics

descripción

Dielectric Strength:	1600VAC	Lead Wire Material:	Tinned Copper
Rated Surge Voltage:	2.5 Times Of Rated Voltage	Product Name:	X2 Safety Capacitor
Capacitance Tolerance:	±20%	Insulation Resistance:	≥ 10,000MΩ
Rated Voltage:	310VAC	Mounting Type:	Through-Hole
Resaltar:	X2 safety capacitor with low dissipation , X2 capacitor for power electronics , X2 protective device capacitor ±20% tolerance

Dissipation Factor ≤ 0.1 Percent X2 Protective Device Capacitor

Product Overview

The X2 Safety Capacitor is a highly reliable and efficient component designed to provide superior protection in electrical circuits. Manufactured with precision and adhering to stringent industry standards, this capacitor is an essential element in safeguarding electronic devices from voltage spikes and electromagnetic interference.

Key Features

Product Name: X2 Safety Capacitor
Lead Wire Material: Tinned Copper
Lead Wire Length: 15mm
Rated Voltage: 310VAC
Dissipation Factor: ≤ 0.1%
Rated Surge Voltage: 2.5 Times Of Rated Voltage
High reliability as an X2 Protective Device Capacitor
Complies with safety standards as an X2 Safety Device Capacitor
Designed for effective performance as an X2 Protective Capacitor

Technical Specifications

Parameter	Specification
Rated Frequency	50/60Hz
Insulation Resistance	≥ 10,000MΩ
Rated Surge Voltage	2.5 Times Of Rated Voltage
Capacitance Range	0.001uF - 4.7uF
Dielectric Strength	1600VAC
Operating Temperature Range	-40°C To +85°C
Rated Voltage	310VAC
Dissipation Factor	≤ 0.1%
Capacitance Tolerance	±20%
Size	P10 15 22.5 7.5MM

Applications

The X2 Safety Capacitor is extensively used in power supply circuits, motor drives, lighting ballasts, home appliances, industrial machinery, renewable energy systems, and automotive electronics. It provides reliable interference suppression and enhanced electrical safety across various applications.

Customization

SLFCF offers customized X2 Protective Capacitor solutions designed to meet specific requirements. Our capacitors operate efficiently within a temperature range of -40°C to +85°C and feature tinned copper lead wires with radial package type for excellent durability and ease of installation.

Support and Services

Our X2 Safety Capacitors meet the highest international safety standards. Installation should be performed by qualified personnel familiar with safety protocols. We recommend periodic inspection and testing to detect any signs of degradation or failure. For detailed specifications and application guidelines, please refer to the official product datasheet.
